Anaesthetic Rotameters Units

Anaesthetic Rotameters Units

Product Details:

X

Product Description

Features

Accuracy

Compliant to ISO 5358, or ISO 15002, or VDI 3513 (upto G=2.5, lin=50%)

No.  of Tubes

1-tube to 6-tubes available as standard

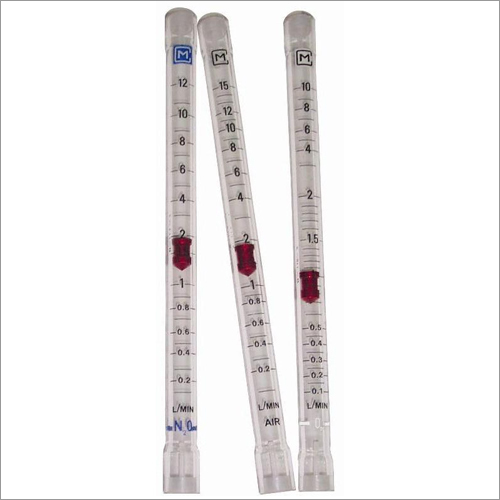

Tube length

Borosilicate glass, Standard 230mm. Other sizes on request (See tube catalogue)

Antistatic

Conductive tubes and bushes for static dissipation

Float

Anodised Aluminum, Red, rotating as standard.

Anti Hypoxia

2-tube to 6-tube versions are also available with Antihypoxia device.

FA valve

Available with Fine adjustment valves for accurate flow control

Flow Range

High flow tubes are available in ranges of 0-10, 0-12. 0-15 LPM

Low flow tubes are available in ranges of 0-1 LPM

Dual scale tubes available for expanded low range reading

Gases

Oxygen, Nitrous Oxide, Air, Xenon

Connections

Inlet and outlet connections are available as per your choice.

Most common are ISO taper with RH outlet, or 6mm Festo.

Background

Yellow green  “Glow in the dark” for easy viewing

Body

Anodised aluminum, or powder coated, as per your choice.

Front

Front cover made from transparent acrylic sheet

Dimensions in mm (Approximate):



Height (A)

Width (B)

Depth (C)

Remarks

1-Tube

280

35

37

The standard dimensions are given here. Customised dimensions are also available.

The dimensions are without FA valve and inlet/outlet connections.

2-Tubes

280

63

37

2-Tubes (Cascade)

300

63

37

3-Tubes

300

105

40

5-Tubes

305

150

45

6-Tubes

305

150

45

INLET CONN

Option-1

Option-2

Option-3

Oxygen

1/8 BSP

7/16 UNF

Festo 6mm

N2O

1/8 BSP

½ UNF

Festo 4mm

Air

¼ BSP

¼ BSP

Festo 6mm

OUTLET CONN

Option-1

Option-1

Option-3

Mixed gas

23mm Cagemount taper

Festo 10mm

Festo 8mm
